Abstract Body (Do not enter title and authors here): Introduction: Optical imaging techniques can characterize properties of tissue at high temporal and spatial resolution, offering unique insights into electrically excitable tissues such as nerve and muscle. We hypothesized that the gated high-speed optical coherence tomography (OCT) could profile the contractile properties of mouse myocardial tissue and facilitate investigations of microscale mechanical function in the beating heart.

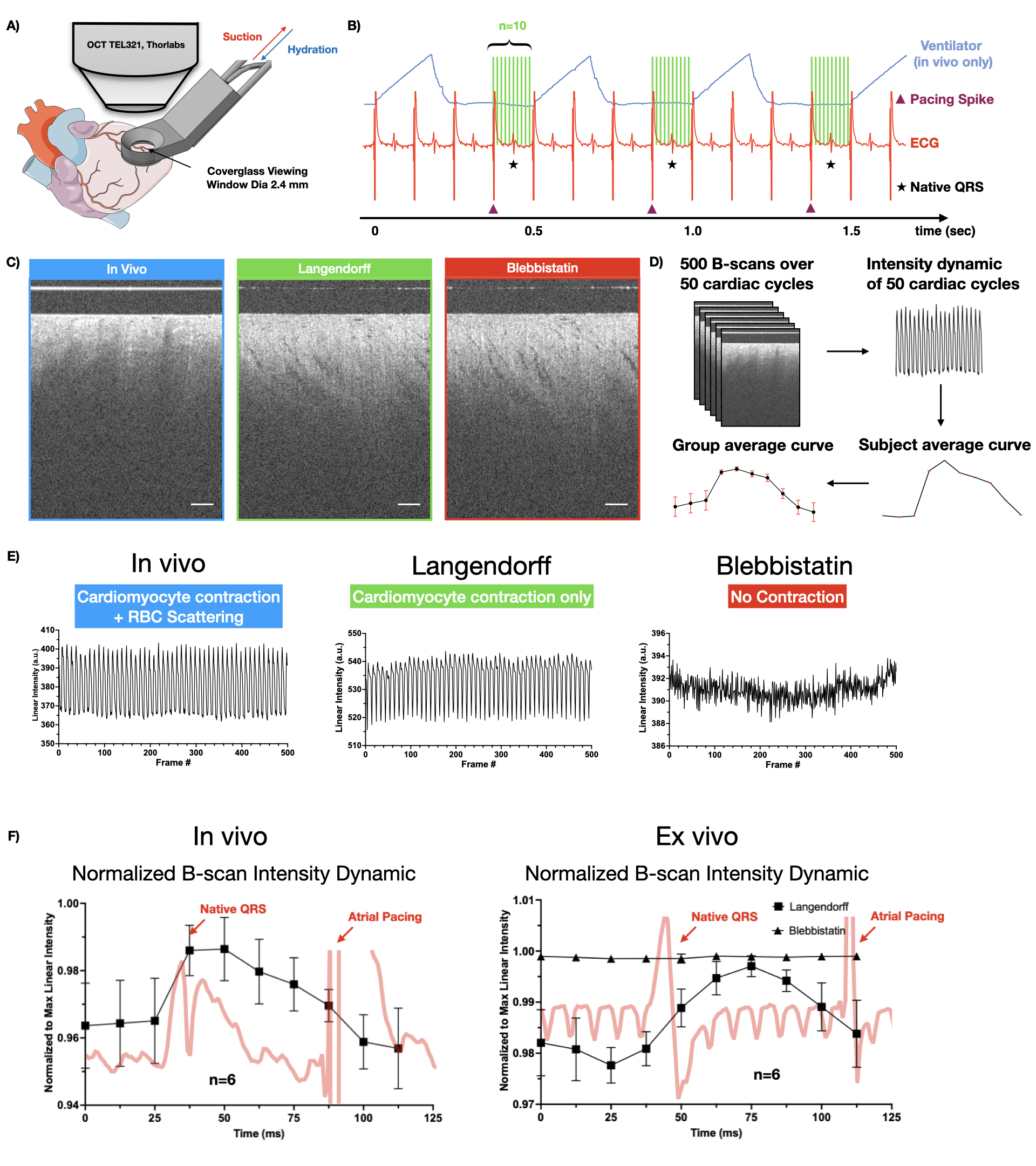

Methods: C57BL/6 male mice (n=6) underwent a sternotomy while anesthetized and ventilated and were imaged at baseline with OCT. Another cohort of C57BL/6 male mice (n=6) were sacrificed and the hearts were ex vivo perfused with crystalloid using a Langendorff system. These hearts were imaged at baseline and after inhibition of contractile function with blebbistatin. OCT was performed using a custom tissue stabilizer and a Thorlabs TEL 321 OCT system, which was synchronized to physiologic signals using custom hardware and software and cardiac pacing protocols (Fig. 1A and 1B). OCT cross-sectional B-scan images (Fig. 1C) were obtained throughout multiple cardiac cycles in both in vivo and ex vivo preparations. Data were processed in MATLAB and ImageJ using the workflow in Fig. 1D.
Results: Highly reproducible cross-sectional mean intensity changes were observed over the contractile cycle in vivo and ex vivo (Fig. 1E, left and middle). With mechanical contraction inhibited by blebbistatin, this cyclical intensity extinguished, linking the optical scattering change measured by OCT to myocardial contraction (Fig. 1E, right). B-scan curves averaged over multiple mice and temporally aligned with the ECG waveform (Fig. 1F) demonstrate a signal intensity waveform that reproducibly varies with the contractile cycle for both in vivo and ex vivo preparations. In vivo and ex vivo baseline waveforms both had peak intensity during systole and minimum in end-diastole (Fig. 1F). Reproducibility in ex vivo beating heart preparations without blood perfusion provides evidence that myocardial mechanical properties, not red blood cell flow, generate the intensity changes.
Conclusion: Gated high-speed OCT imaging can quantify the mechanical contraction wave in the myocardium. Combined with gated OCT angiography, OCT techniques will provide high resolution imaging of both blood flow and mechanical contractility of the beating heart in small animal models of heart disease.
