Abstract Body (Do not enter title and authors here): Introduction
Recent research has shown that AI is able to assess biological aging and cardiovascular disease (CVD) risk using chest radiographs. However, the lack of explainability of such deep learning algorithms hinders clinical utility and adoption. This motivates the current study which searches for and tests the use of machine extractable quantitative features in chest radiographs to predict CVD risk in population screening.

Method

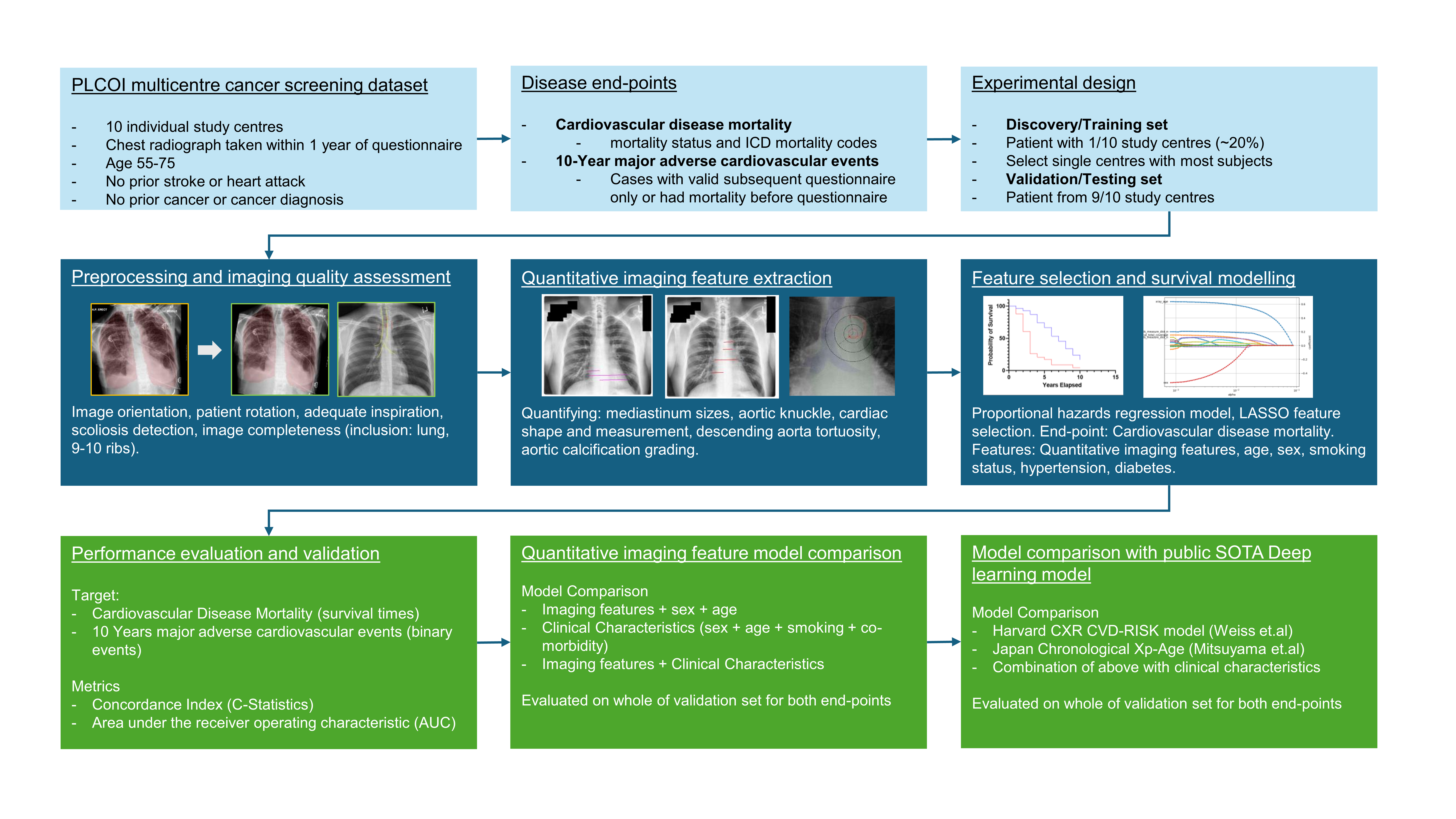

Chest radiograph measurements characterizing cardiomediastinal geometry, aortic calcification and tortuosity were handpicked for development of a segmentation-based feature extraction algorithm. The algorithm was applied on the PLCO lung screening dataset for analysis. The association between measurement-based imaging features, clinical characteristics (age, sex, BMI, smoking status, hypertension, diabetes, liver disease) with CVD mortality and 10-year major adverse cardiovascular events (MACE) were analysed by using proportional hazard regression, with feature selection done by LASSO.

Result

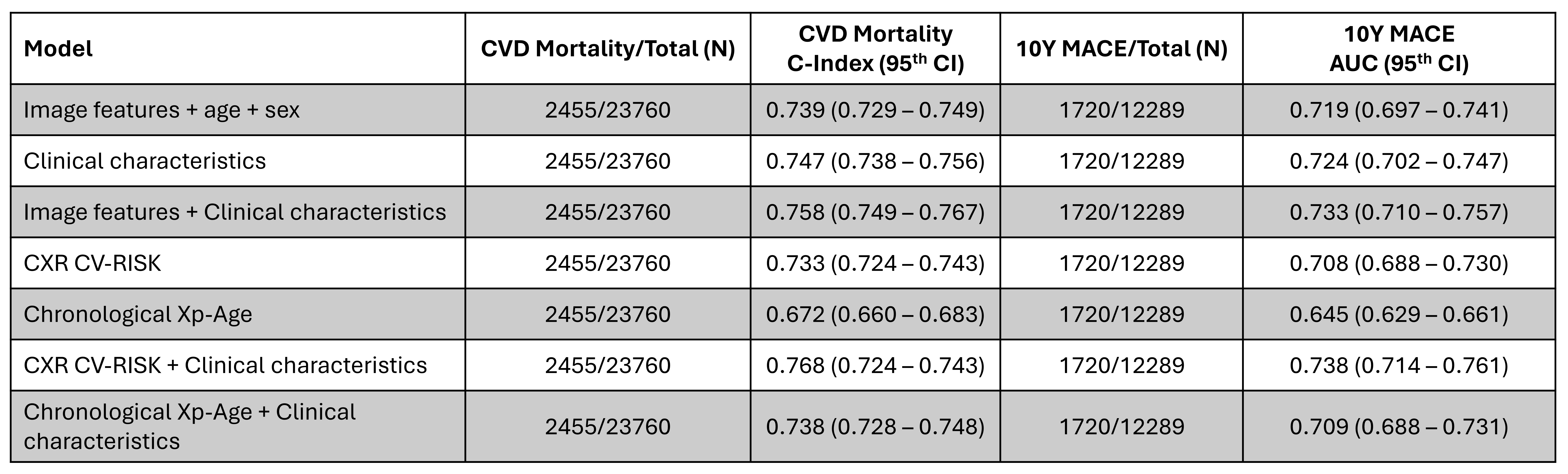

Of 29,453 eligible subjects, 5693 subjects from a single study centre were used for fitting of all models. The median follow-up time was 19 years. A total of 32 imaging features were extracted and analysed. For both 10-year MACE and CVD mortality, model using imaging features, age, and sex performed similarly to model using conventional risk factors, and a deep learning chest radiograph CVD risk model. Two imaging features, mediastinal width at valve-level [HR 1.36 (1.23-1.50)] and maximal lateral displacement of descending aorta [HR 1.29 (1.18-1.42)] were found to be prognostic. To the best of our knowledge, these features have not been reported previously.

Conclusion
Quantitative imaging features can predict CVD risk in chest radiograph similar to deep learning models while providing feature interpretability and explainability. Two novel imaging features prognostic of CVD risk were found and shown to be complementary to conventional risk factors.
